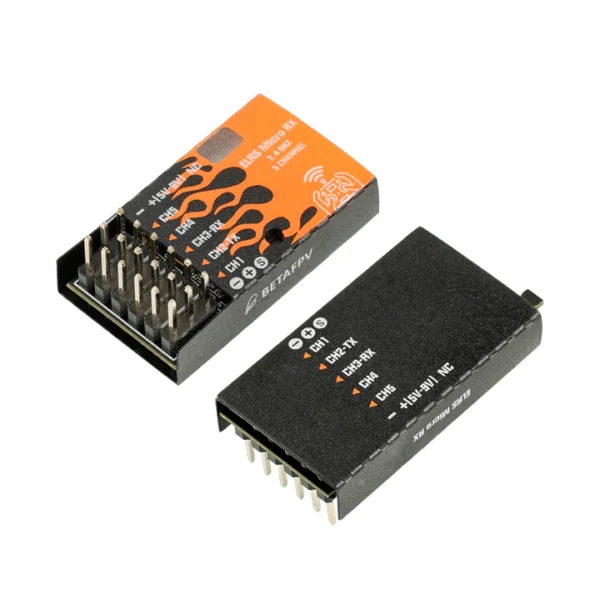

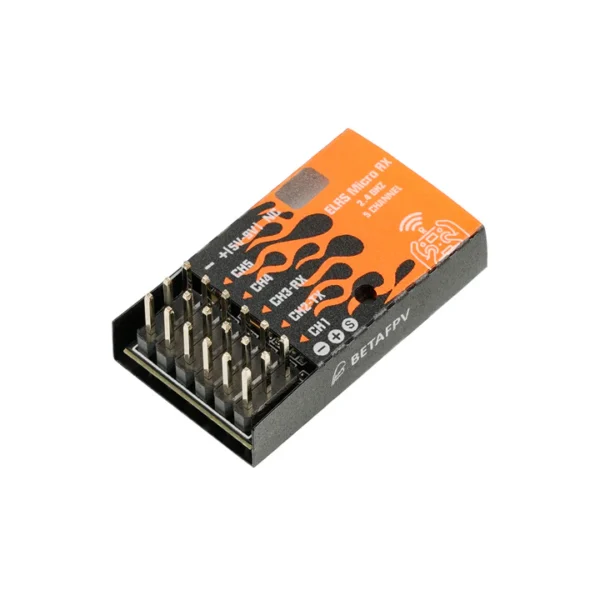

Receptor ELRS Micro 2,4g

Specification

• Item: BETAFPV ELRS Micro Receiver

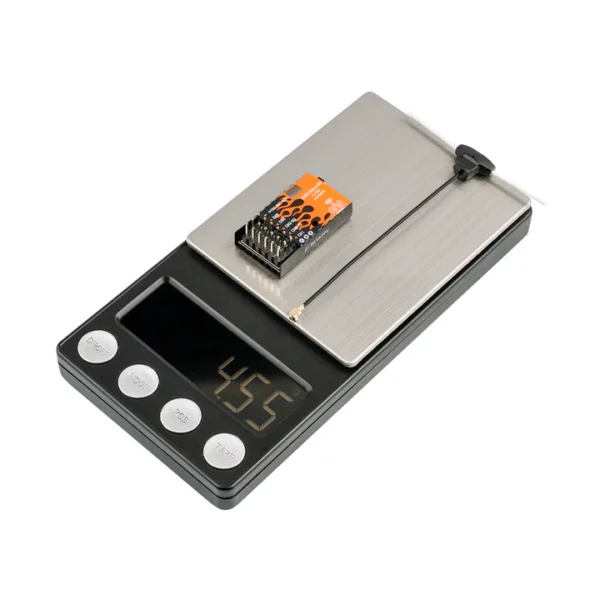

• Weight: 4.5g (with antenna)

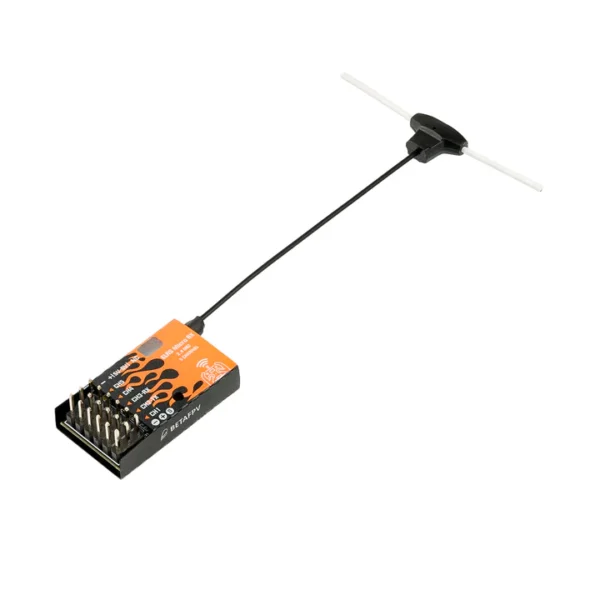

• Antenna: U.FL + T antenna (recommend 80mm Dipole T Antenna)

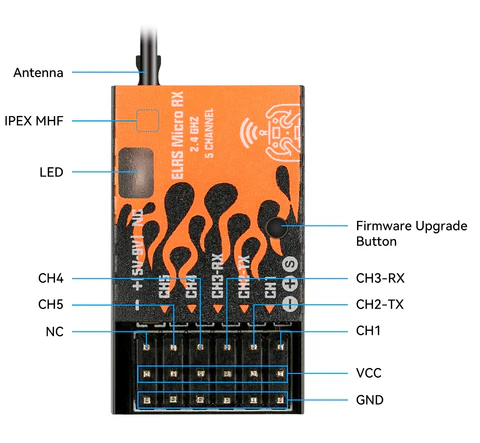

• PWM channel: 5 channels
• Serial output protocol: PWM or CRSF
• Size: 19mm*32mm*9mm (without antenna)
• MCU: ESP8285/SX1280/SX1281
• Telemetry power: 12.5dbm/17mW
• Frequency bands: 2.4GHz ISM
• Input voltage: 5V~9V DC @ “+” pad
• Default firmware version: ExpressLRS v2.0
• Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.
