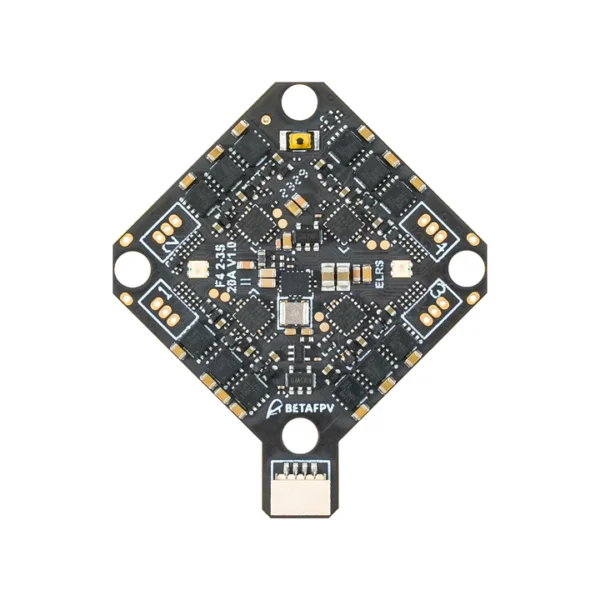

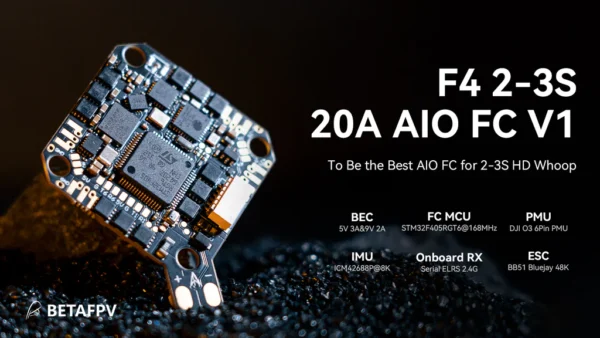

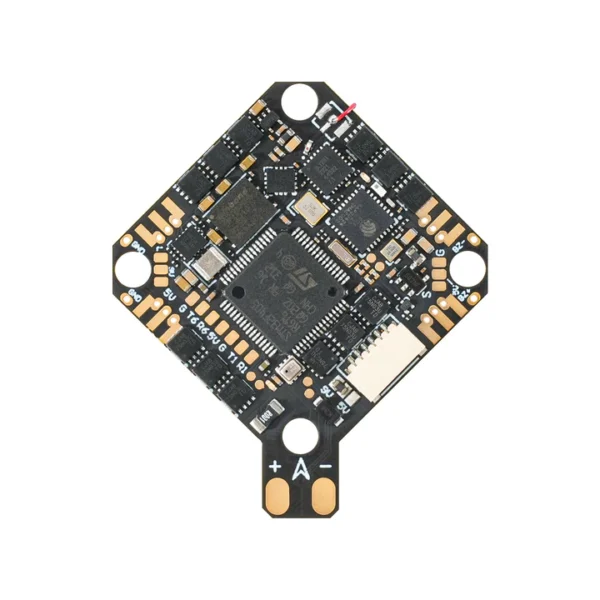

Specification

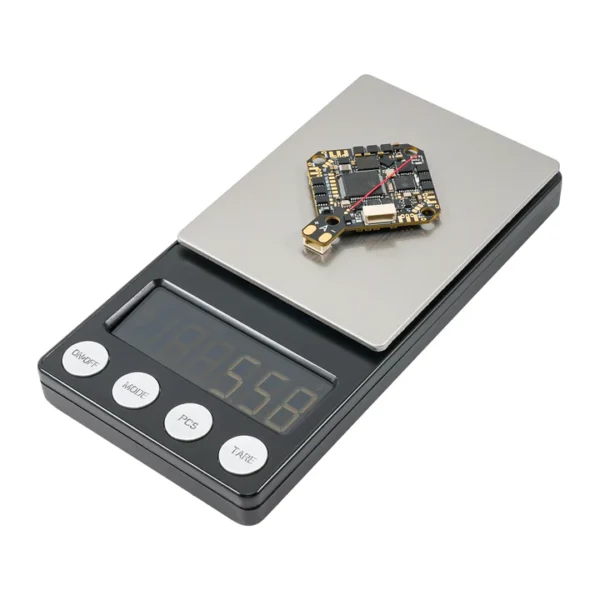

- Weight: 5.58g (without motor connectors and power cable),5.92g (with motor connectors)
- Mounting Hole Size: 26mm x 26mm
- CPU*: STM32F405RGT6 (168MHz)
- Six-Axis: ICM42688P (SPI connection)
- RX: Serial ELRS 2.4G Receiver
- RX firmware version: BETAFPV AIO 2400 RX ELRS V3.3.0
- Antenna: Enameled wire
- Blackbox Memory: 16MB
- Sensor: Barometer (BMP280/DSP310), Voltage & Current
- 5V BEC*: 5V 3A@8V supply
- 9V BEC*: 9V 2A@8V supply
- USB Port: SH1.0 4-Pin
- Built-in ESC with 20A continuous and peak 25A current
- ESC input voltage: 2-3S
- FC firmfware version: Betaflight_4.4.1_BETAFPVF405
- ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
- Signal support: D-shot300, D-shot600
Diagram
Below is the diagram for F4 2-3S 20A AIO FC V1.
